MY1016 250W 350W 12V 24V Ebike Kit High Speed Permanent E-scooter Engine Electric Bicycle Brush DC Motor for Battery Powered Rid on Toy

Products > Brush DC Motor > MY1016 250W 350W 12V 24V Ebike Kit High Speed Permanent E-scooter Engine Electric Bicycle Brush DC Motor for Battery Powered Rid on Toy
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7

MY1016 250W 350W 12V 24V Ebike Kit High Speed Permanent E-scooter Engine Electric Bicycle Brush DC Motor for Battery Powered Rid on Toy

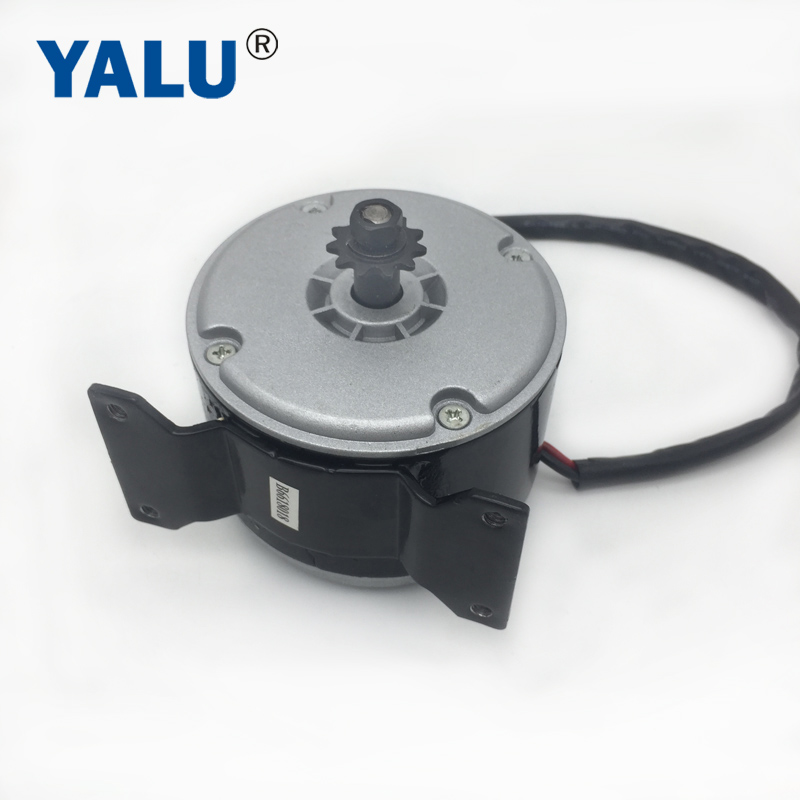

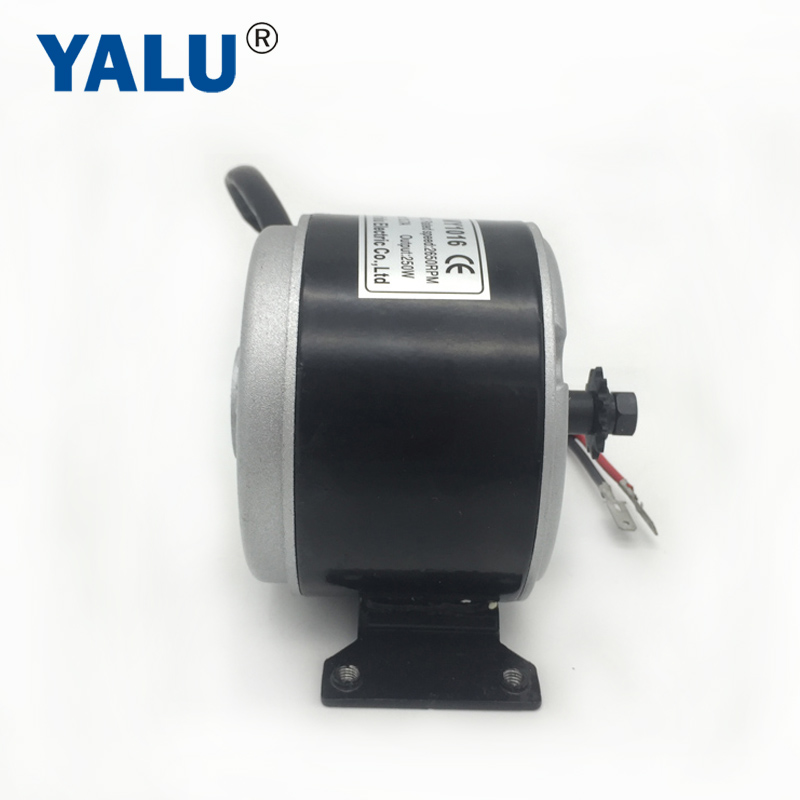

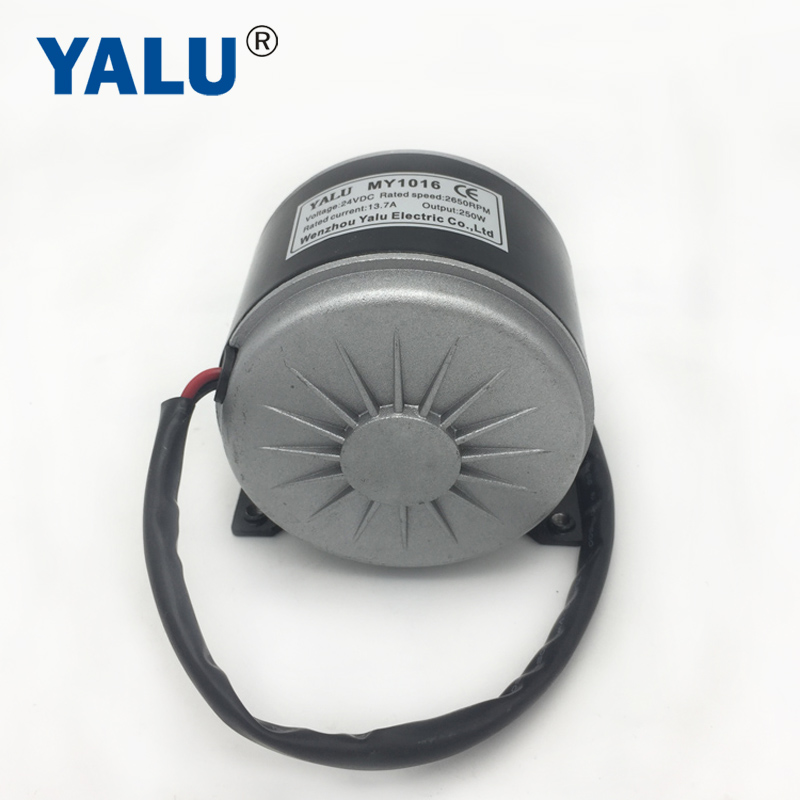

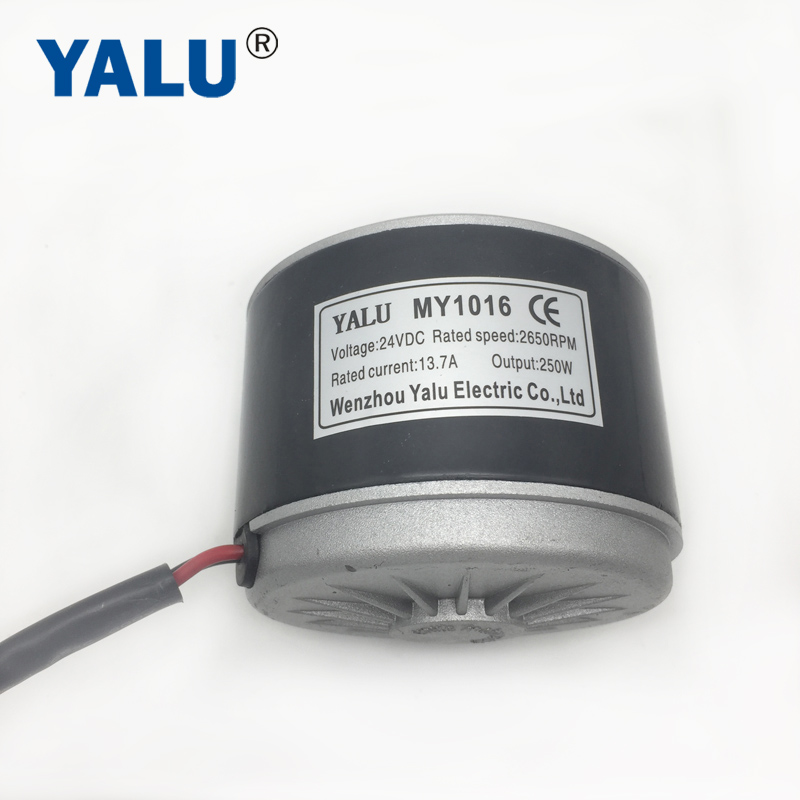

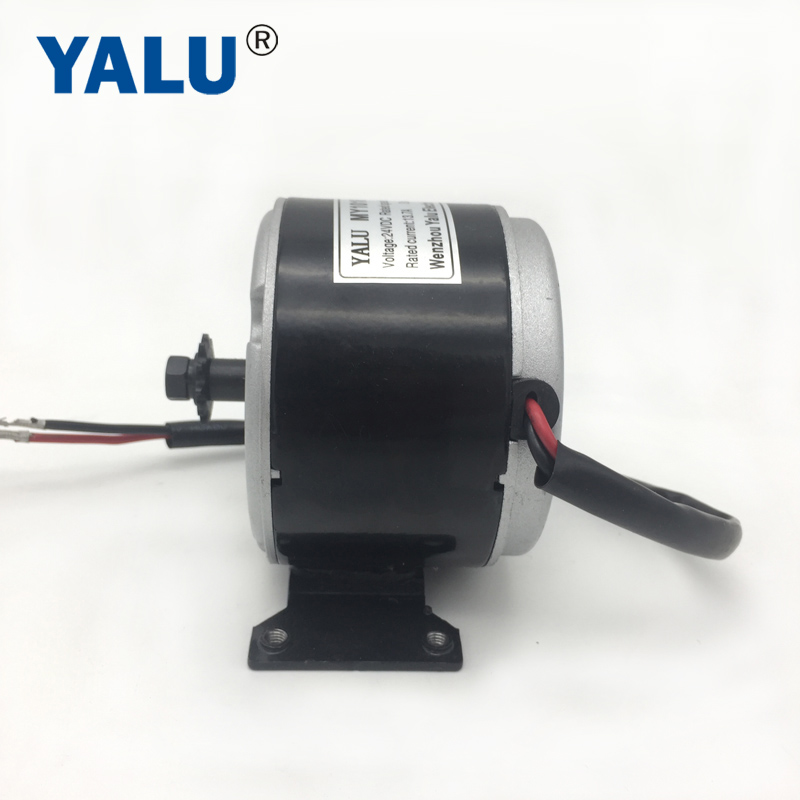

MY1016 24V 250W electric bicycle motor,E-bike motor,bicycle parts. 24 volt 250W output ,electric scooter and bike motor. Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket on the base. As this is DC motor it is capable of rotation in either the clockwise or counter clockwise direction by just reversing the battery polarity to the motor and can be speed controlled. If you want to speed control these, please take a look at our available speed controllers
On sale： $15.00~23.00
Price： $18.00~26.00
shared：

Add to wishlist
  $0.00
250W 350W
12v 24v
Buy now Add to cart

Specifications of Electric Bicycle Brush DC Motor

MY1016 24V 250W electric bicycle motor,E-bike motor,bicycle parts. 24 volt 250W output ,electric scooter and bike motor. Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket on the base. As this is DC motor it is capable of rotation in either the clockwise or counter clockwise direction by just reversing the battery polarity to the motor and can be speed controlled. If you want to speed control these, please take a look at our available speed controllers

1. Rated output Power 250W
2. Rated Voltage 24V DC
3. Rated speed 3000RPM
4. No load speed 3850RPM
5. Full load Current ≤13.4A
6. No load Current ≤2.2A
7. Rated Torque 0.80N.m
8. Efficiency ≥78%
9. Application Light E.V./ E-bike
10.Transmission :chain sprocket (11 teeth, pitch 1/4"=6,35 mm), exchangeable, fixation nut shaft diameter :10 mm (milled groove one-sided 1,5 mm)


1 MY1016 250W WP

微信图片_201807261110201微信图片_201807261110251微信图片_201807261110291微信图片_201807261110361微信图片_201807261110411微信图片_201807261110451微信图片_201807261110581副本
