YALU MOTOR New Design 500W 48V Middle Drive Crank Engine Electric Bicycle Conversion Kit for Lithium Battery with LCD Display

Products > Middle Drive E-bike Kit > YALU MOTOR New Design 500W 48V Middle Drive Crank Engine Electric Bicycle Conversion Kit for Lithium Battery with LCD Display

YALU MOTOR New Design 500W 48V Middle Drive Crank Engine Electric Bicycle Conversion Kit for Lithium Battery with LCD Display

This is Our New Design Middle Drive Motor Kit,insall on Ebikes,500W 48V,mAX torque to 120m.Speed reach above 50kmh.Which have Waterproof& LCD Display .Good torque and Speed.
On sale: $279.00~315.00
Price: $310.00~350.00
  $0.00
500W
48V
Waterproof&Display Type Common Type

NEW item Electric Mountain Escooter Powerful 40KM-50KM Fast speed DIY BLDC Ebike Middle Motor Kit for Sports Fans Brushless DC Motor Conversion Kit

Can COMPLETE WITH BAFANG Middle Motor Kit. And Cheaper than Bafang Motor Kit.


Specifications of Ebike MIDDLE DRIVE CONVERSION KIT


The 500W Motor Parameter:
*Middle drive Motor
*Planetary reduction gear brushless DC Motor
*Rated volt:48V
*Rated Power:500W
*Speed:200-220rpm
*Max Torque:120Nm.
*Effeciency:≥ 80 %
*Through the sensor speed sensor

The Speed can reach to above 50kmh.


Install Parameter:
*Weight:around 5KG(Not include battery)
*Reduction ratio: 1:20
*Noise: <55Db
*Protection grade: 65
*The Center shaft,five way size suitable for 68mm(the pedal not included).
* The chain wheel 32T-42T-42T,the outer 42T drives by motor. if the kit will be
used in hilly areas, we recommend choosing a relatively small chain wheel ).




Type1---Waterproof Display Type

The Parts List:

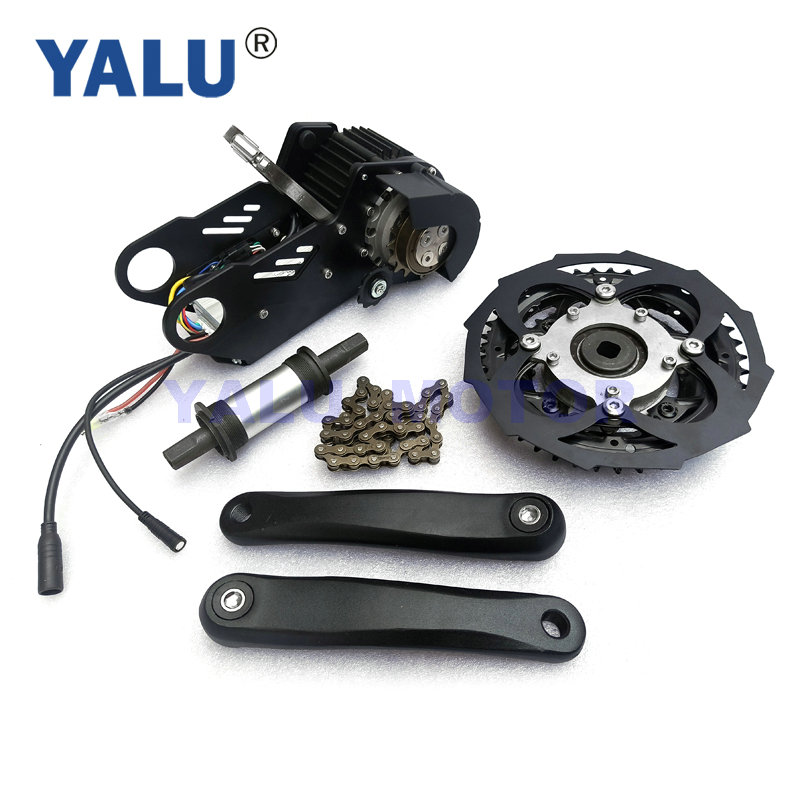

1. 1x The Integrated Install Middle Drive Motor Set
    (a.Brushless DC Motor 48V 500W; b. Install Bracket;
     c. Crank set+center shaft; d.Chain wheel 32T-42T-42T; e. Chain. )
2. 1x Brushless Controller 48V 500W(install built-in the bracket)
3. 1x LCD display model S866
4. 1x Twist throttle
5. 1x Brake Level
6. 1x LED Headlight
7. 1x PAS Sensor
8. 1x Light&Horn Switch
9. 1x Water proof wire harness





 Type2---Common Type

The Parts List:

1. 1x The Integrated Install Middle Drive Motor Set
    (a.Brushless DC Motor 48V 500W; b. Install Bracket;
     c. Crank set+center shaft; d.Chain wheel 32T-42T-42T; e. Chain. )
2. 1x Brushless Controller 48V 500W(install built-in the bracket)
3. 1x Digital throttle(with battery indicator & key switch)
4. 1x Brake Level
5. 1x PAS Sensor





Note:

1.this kit without battery and battery charger .

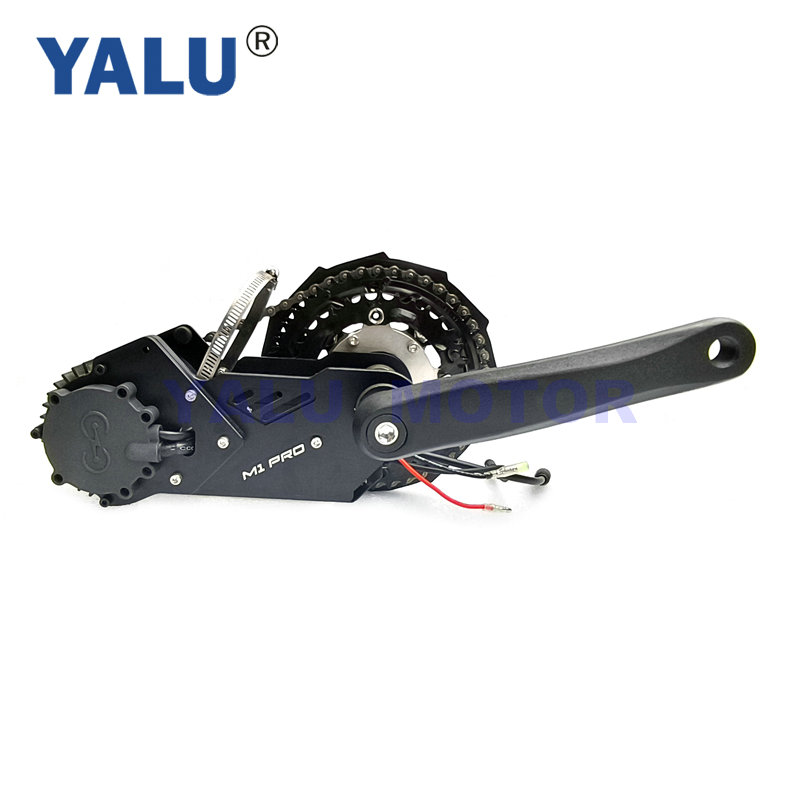

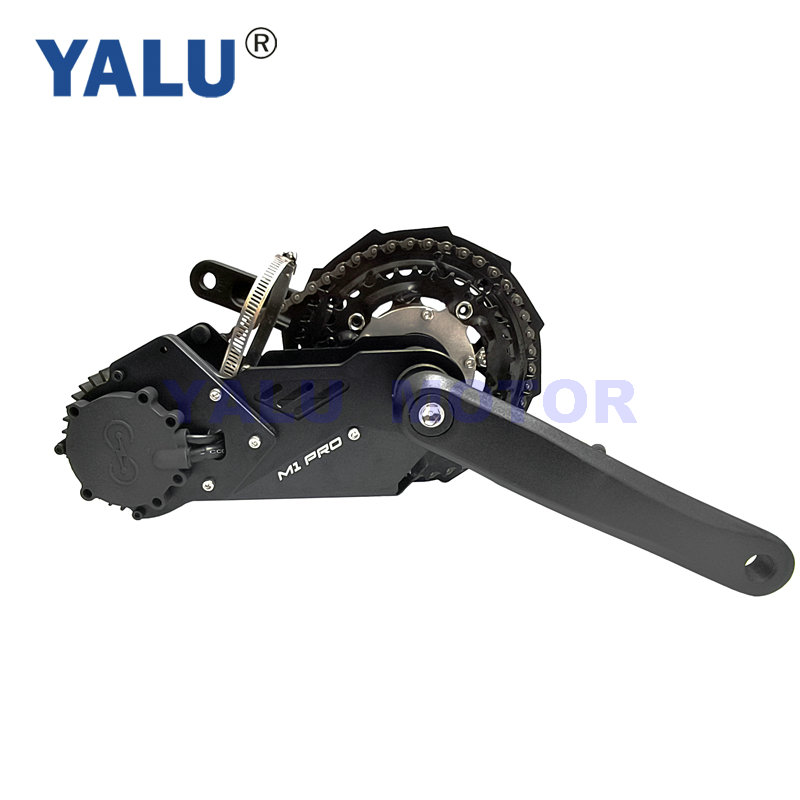

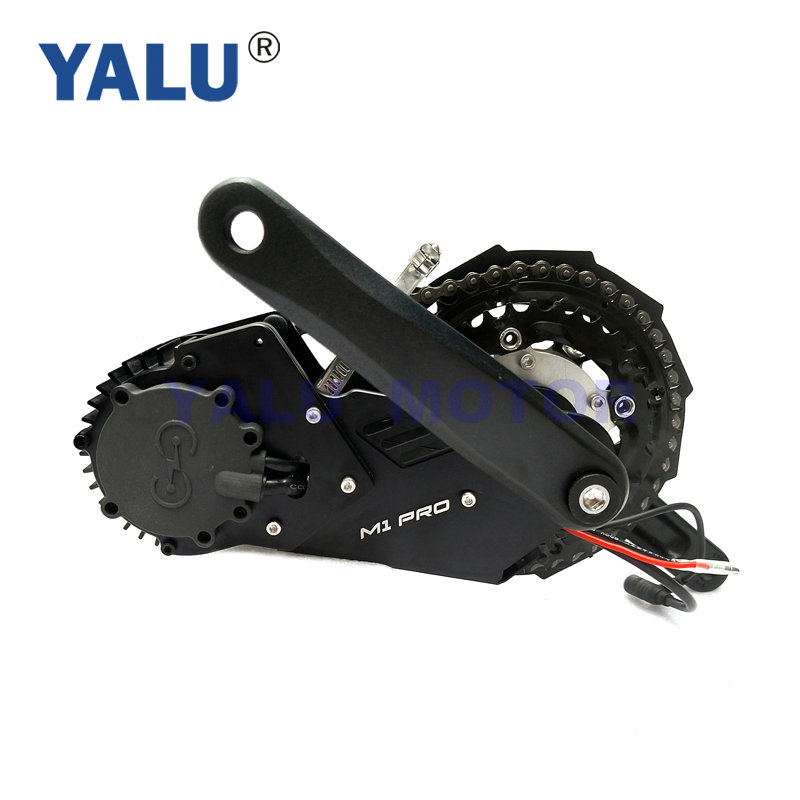

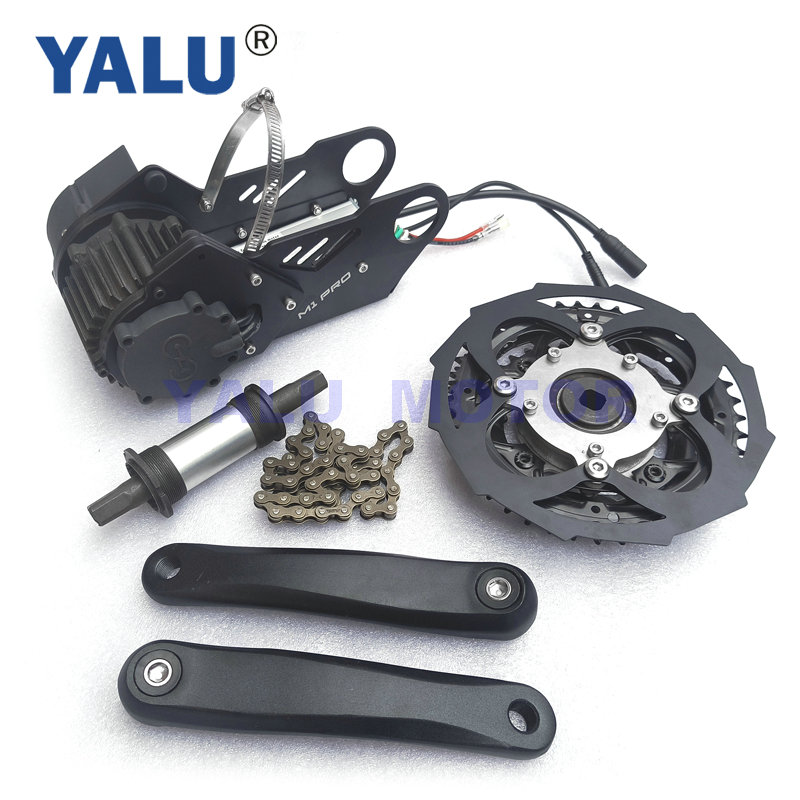

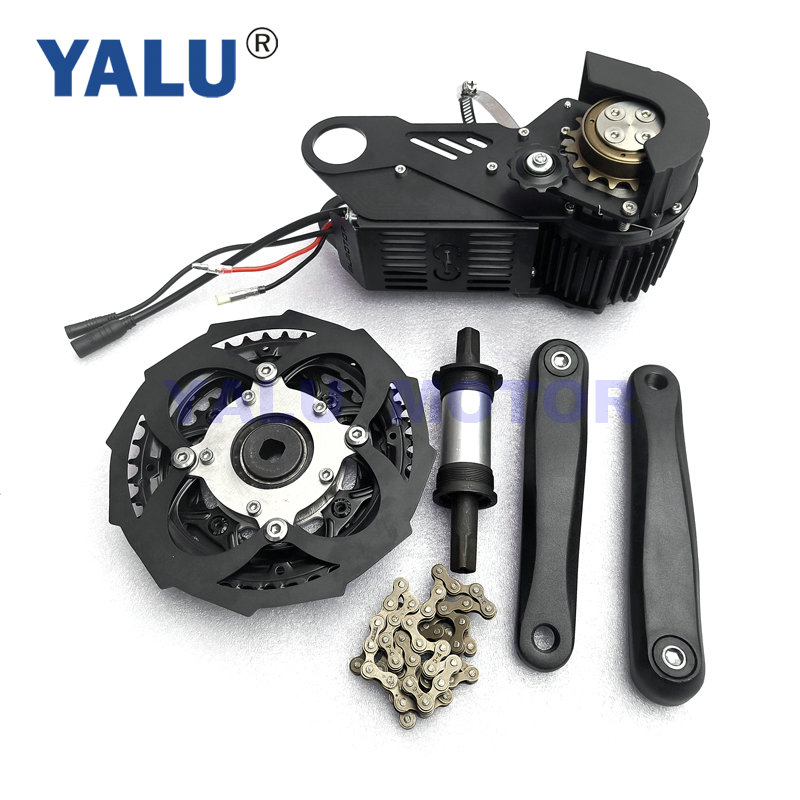

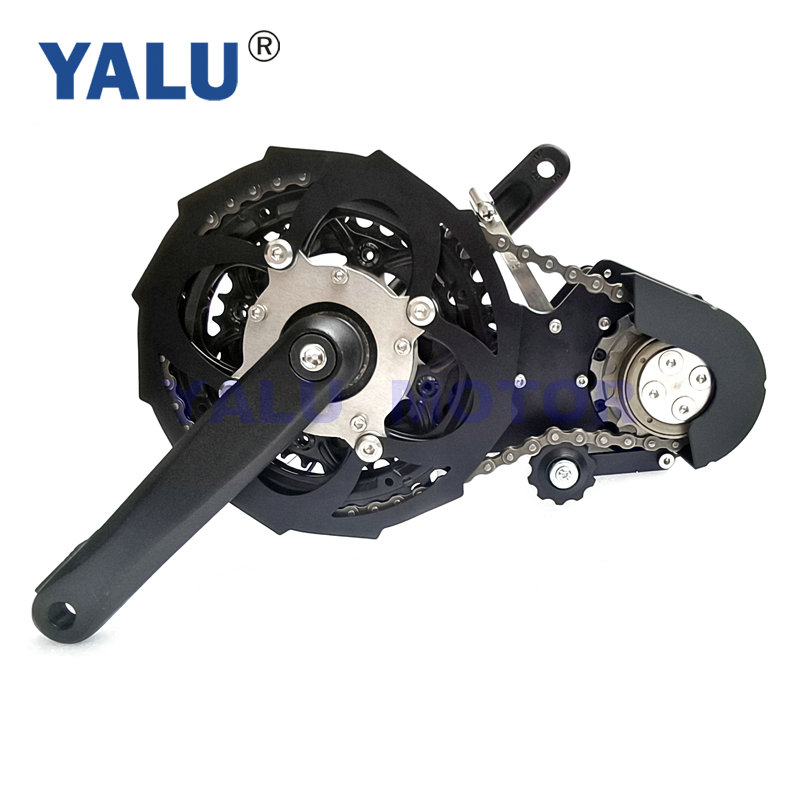

Pictures of Ebike MIDDLE DRIVE CONVERSION KIT:

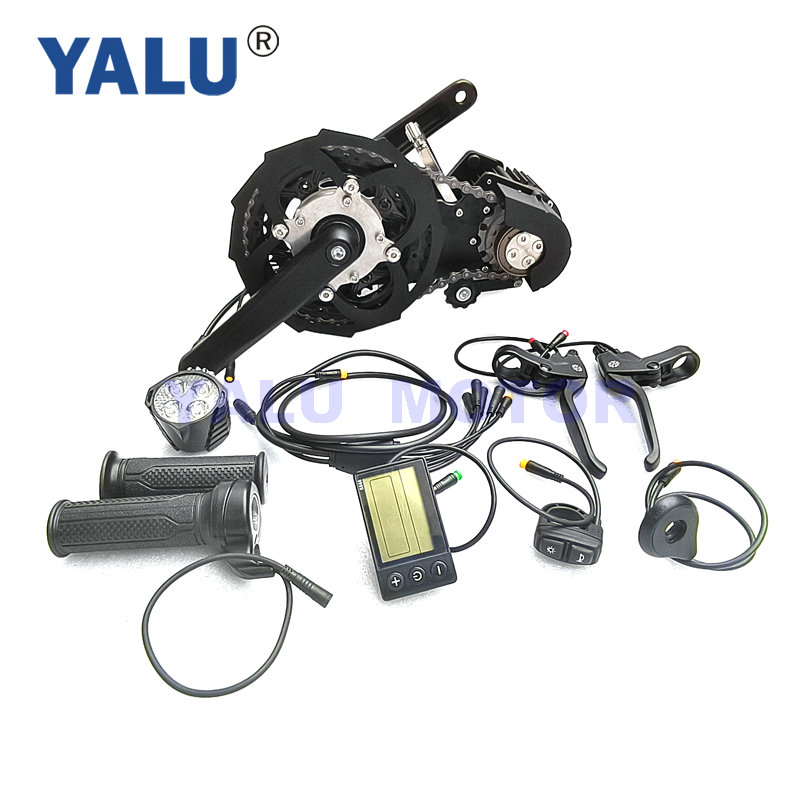

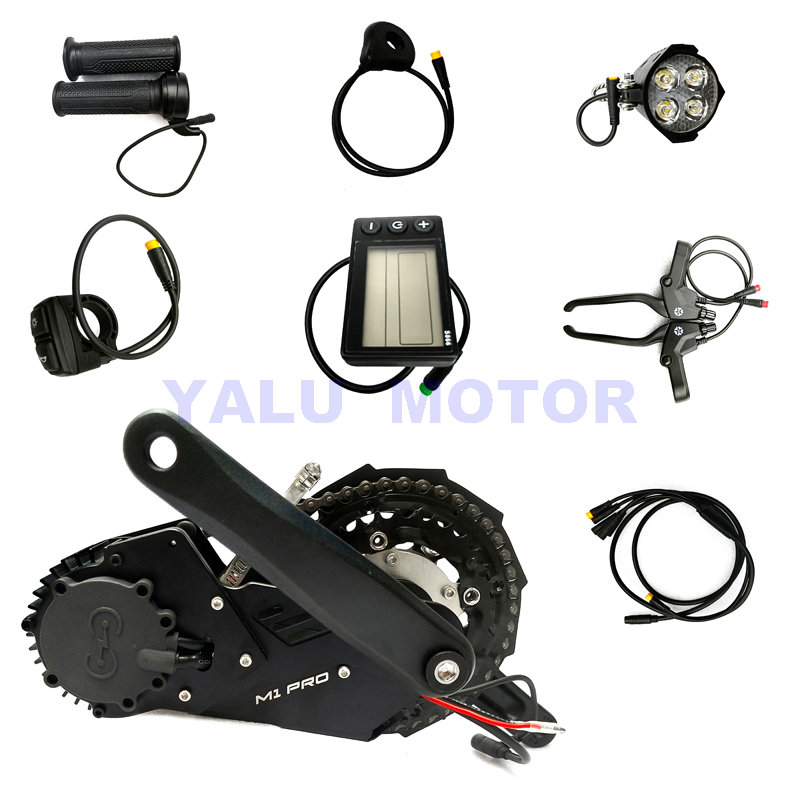

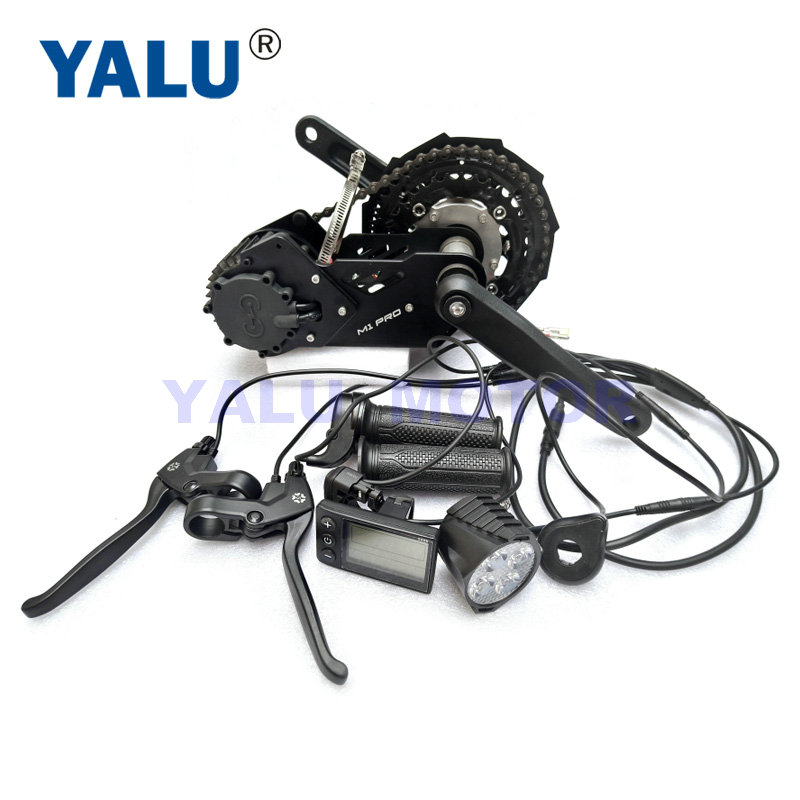

Type1---Waterproof Display Type:

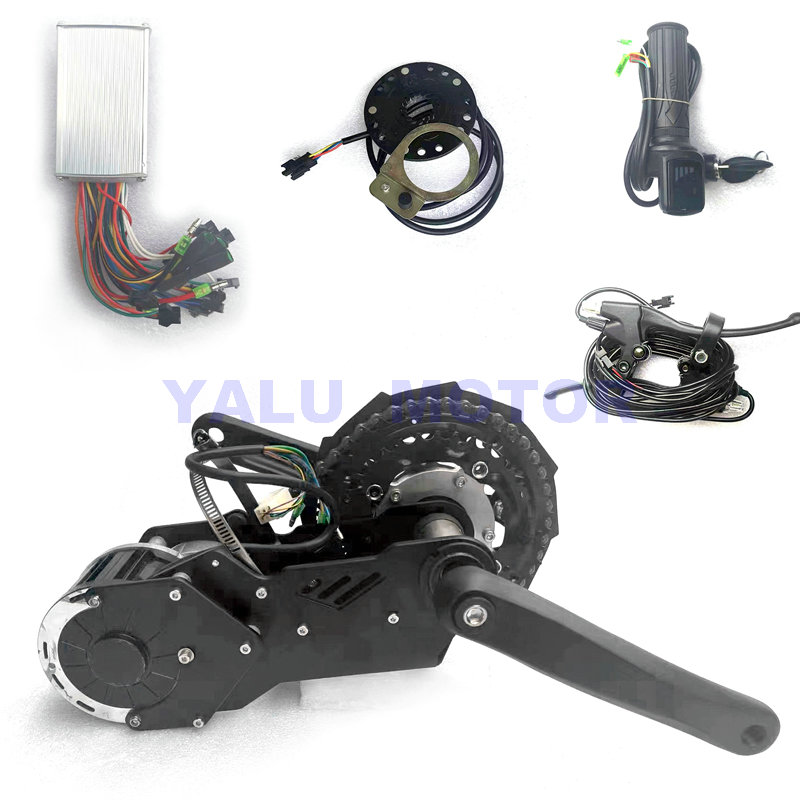

Type2-----Common Type:

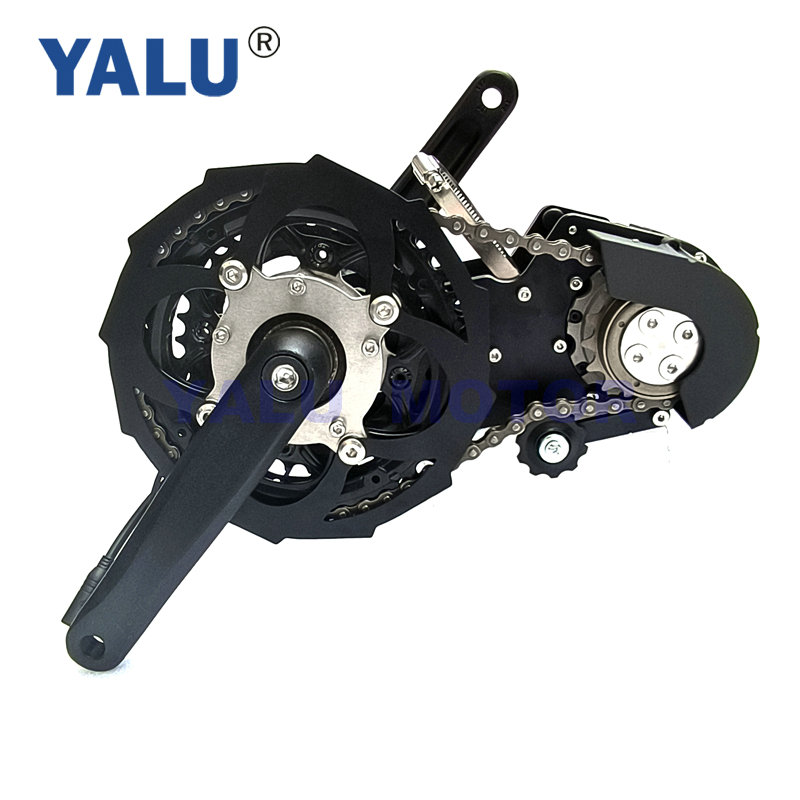

More Details:







Parts Photos:

Controller:

YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

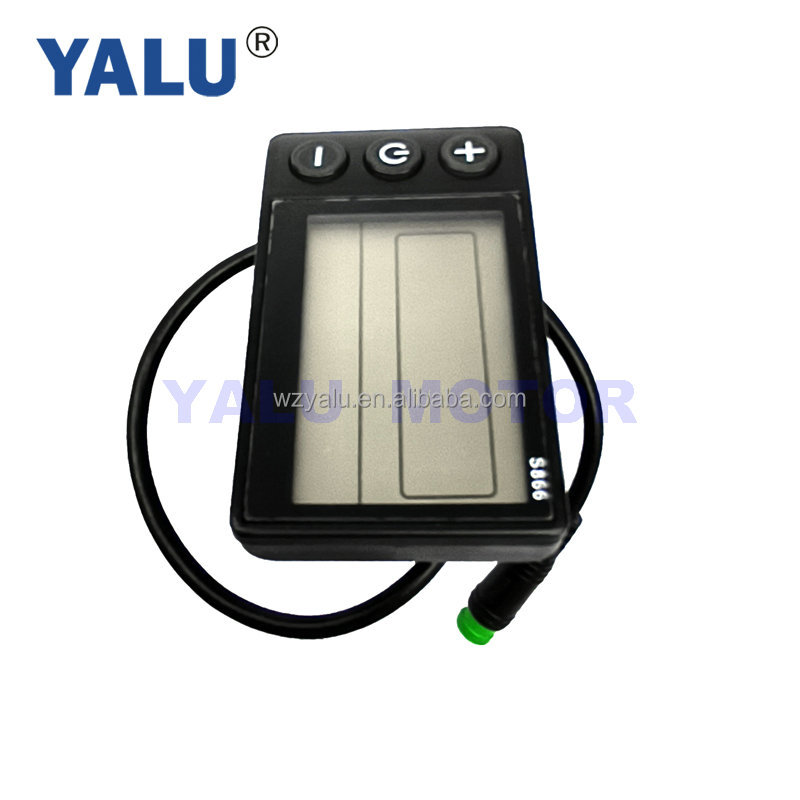

LCD Display:

YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

Twisht Throttle:

YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

Brake Level:

YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

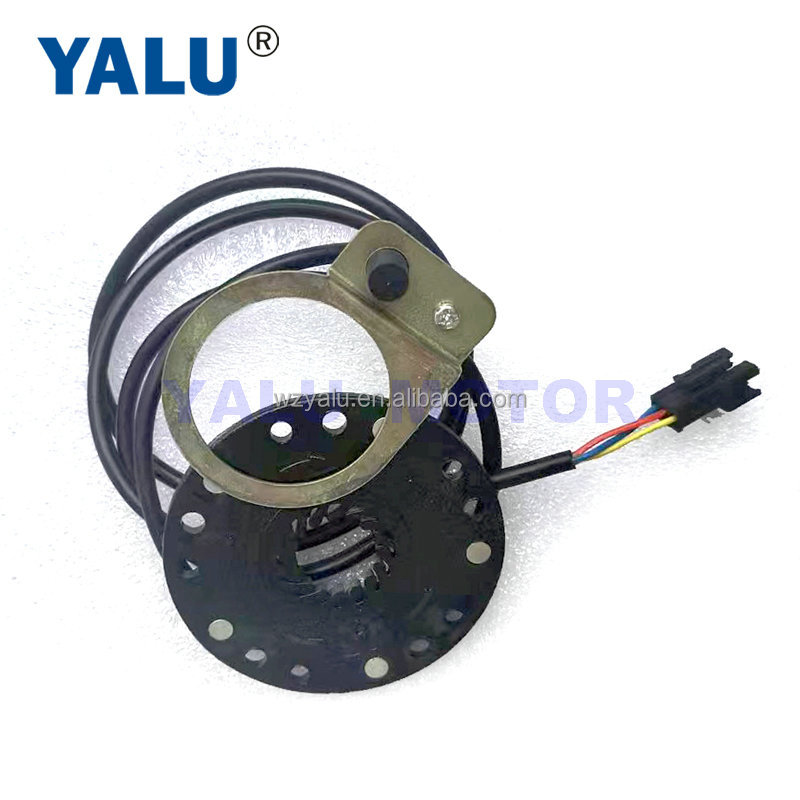

PAS Sensor:

YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

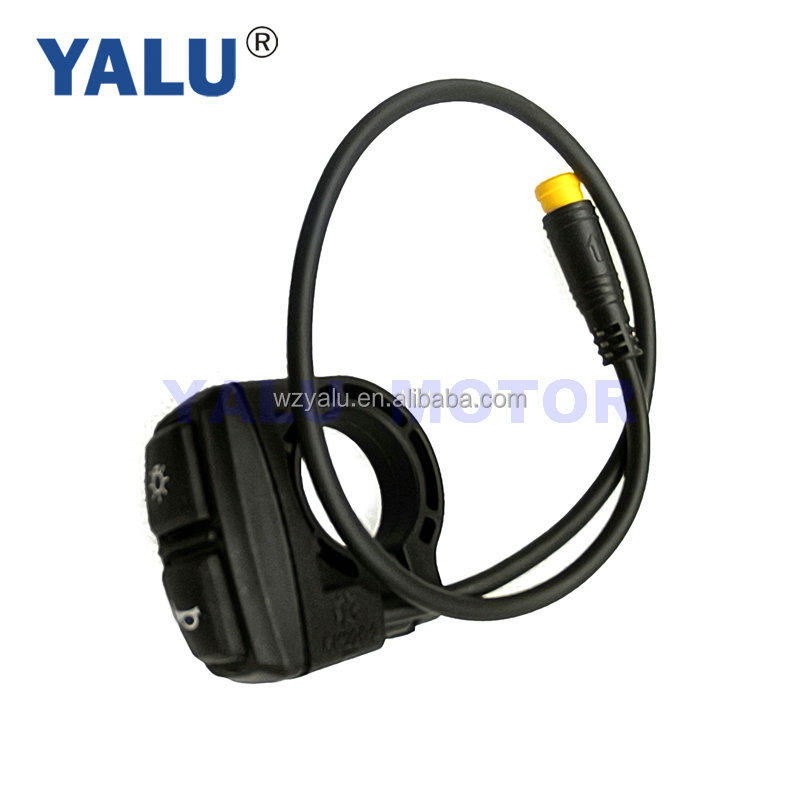

Switch:

YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

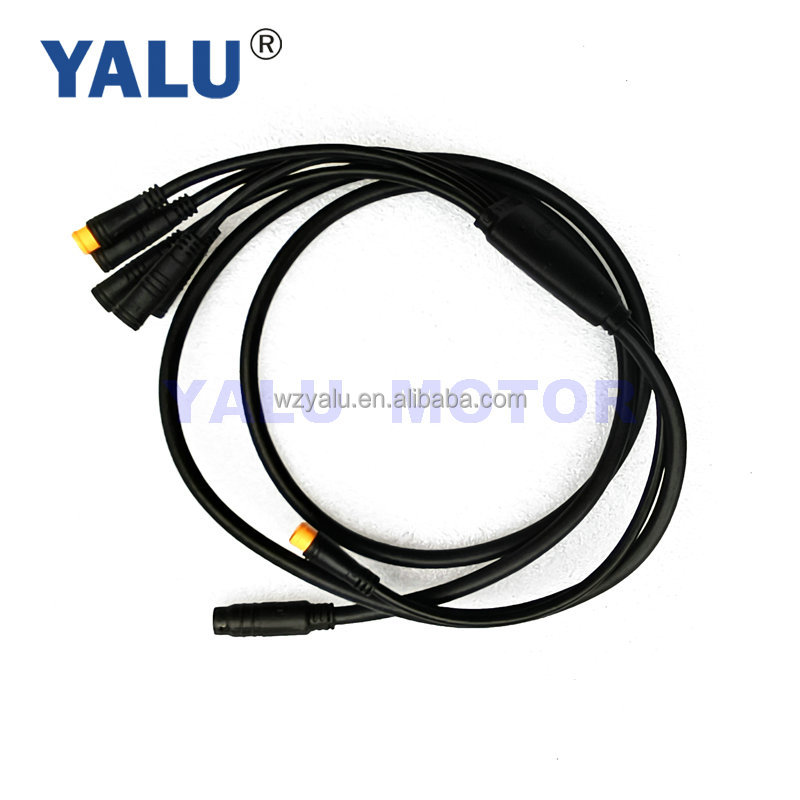

Waterproof wire harness:YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

PAS Sensor--for Common Type:

YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

Digital Throttle---For Common type:

YALU MOTOR ELECTRIC MOUNTAIN BIKE 500W 800W 1000W 48V Brushless MIDDLE DRIVE CONVERSION KIT with Waterproof& Ebike LCD Display

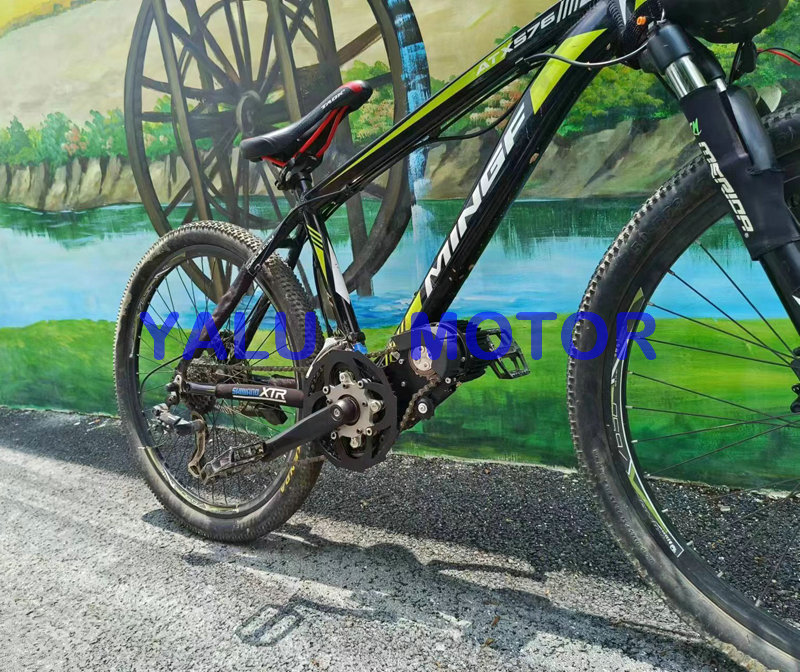

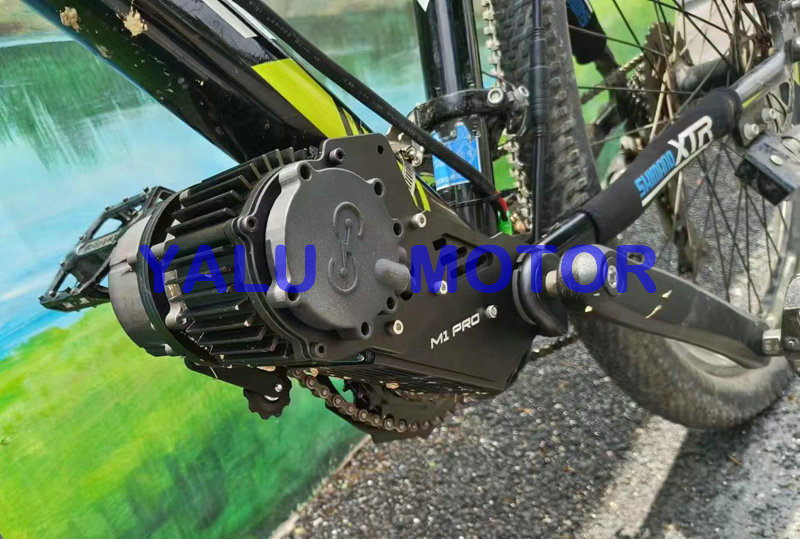

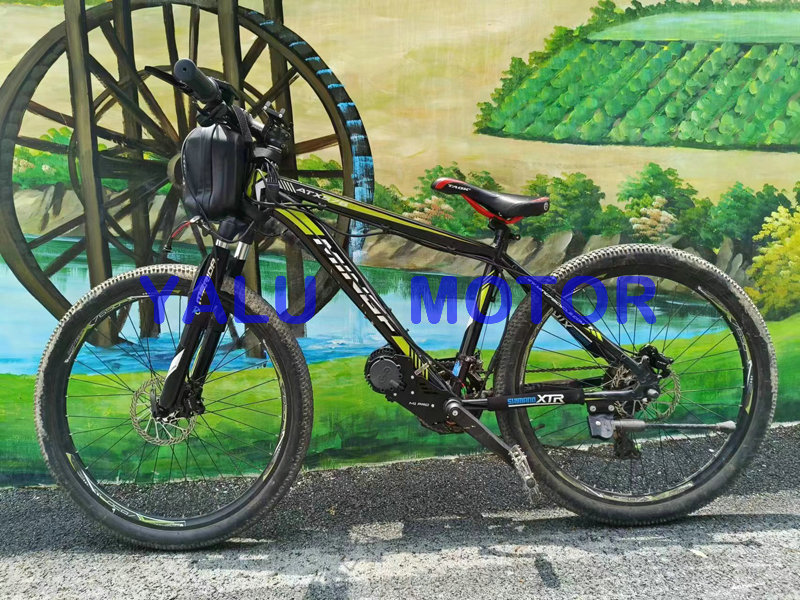

Pictures of Application Photos:
