XYD-6B Electric Scooter Motor Currie Technologies 24 Volt 450 Watt DC for 500 Series Schwinn & IZIP Reversible with 11 Tooth #25 Chain Sprocket

XYD-6B 24V 450W Electric Scooter Motor with #25 chain 11T sprocket for 500 Series Schwinn & IZIP Reversible
On sale： $38.00
Price： $50.00
shared：

Add to wishlist
  $0.00
24V 450W
Buy now Add to cart

XYD-6B Electric Scooter Motor Currie Technologies 24 Volt 450 Watt DC for 500 Series Schwinn & IZIP Reversible with 11 Tooth #25 Chain Sprocket


Main Parameter:

Model: XYD-6B

Power: 250W-450W

Volt: 24V-48V

Efficiency:78%

Rated Speed: 800-4500rpm

Rated Currency:15-30A

Rated Torque:0.8-2N.m

Un-load Speed:1200-4700rpm

Un-load Current:1-3A

Motor outer diameter:102mm


The Main data of 24V 450W(We have stock):

Power:450W

Volt:24V

Rated Speed:2600RPM

Rated Current:28A


We also accept custom make the datas.Any demand,feel free contact with us.

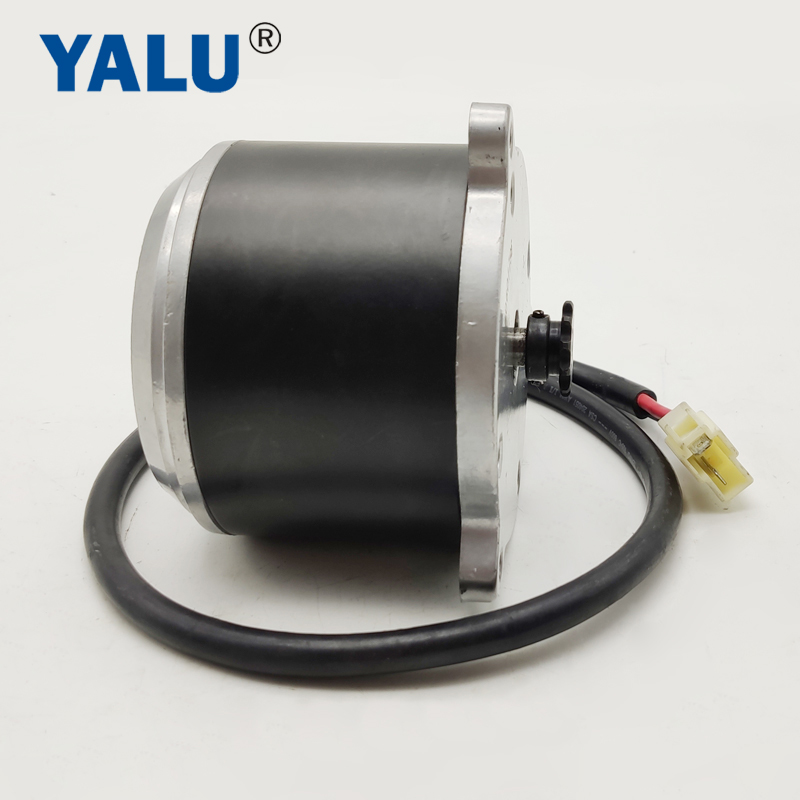

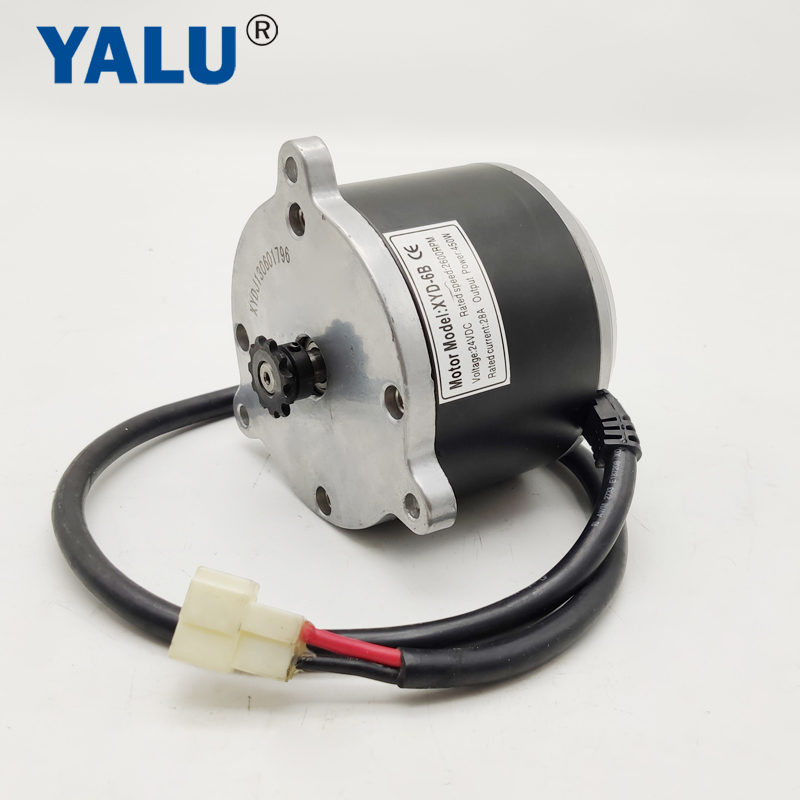

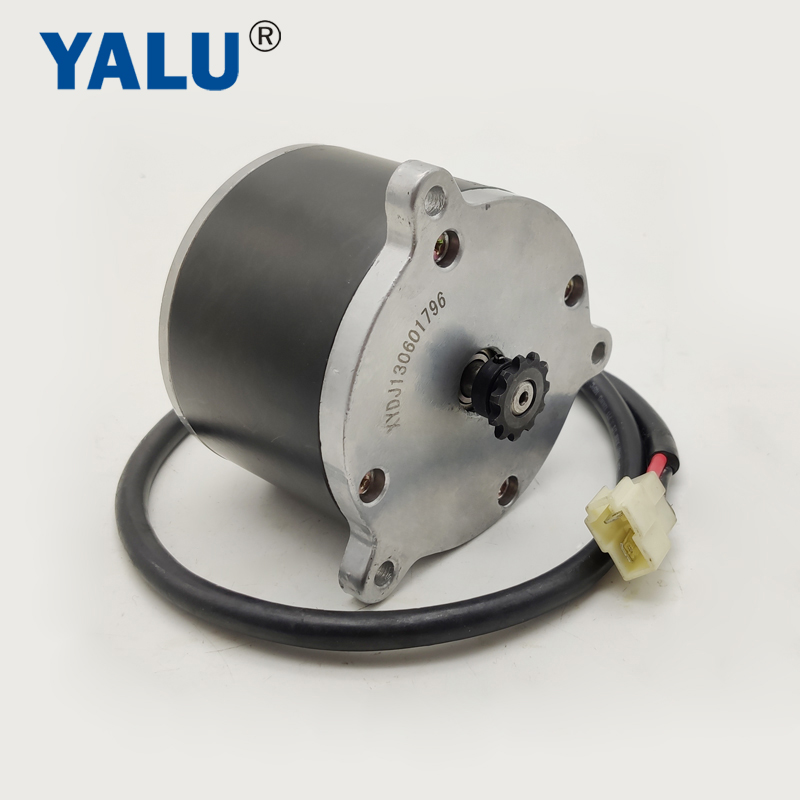

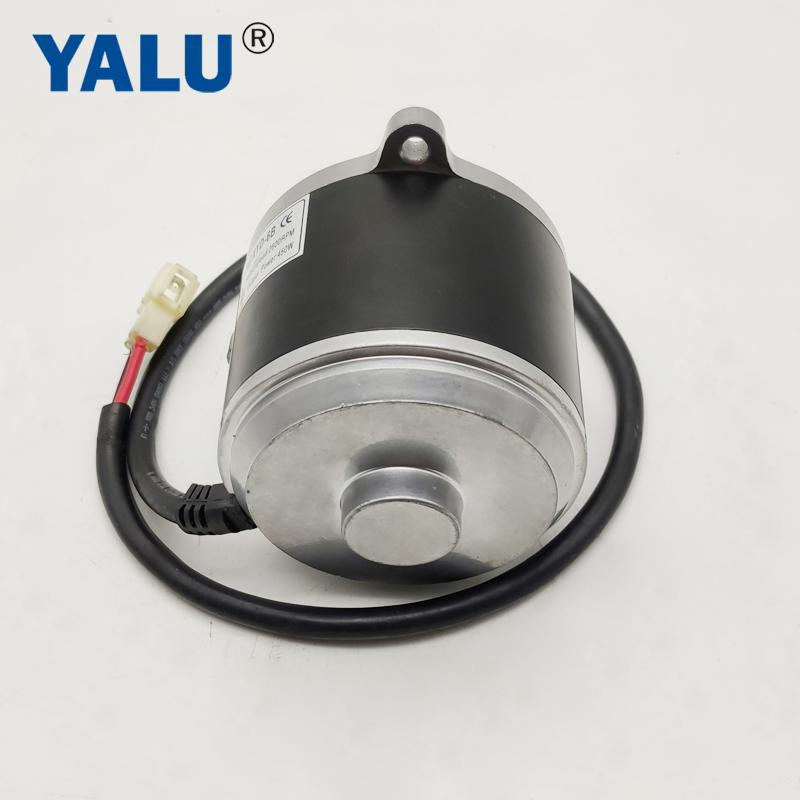

Product Photos:
