Products > Brush DC Motor > MY1016 250W 350W Electric KT EV Balance Electric Scooter High Speed Brush Electric Bike Motor with Belt Pulley

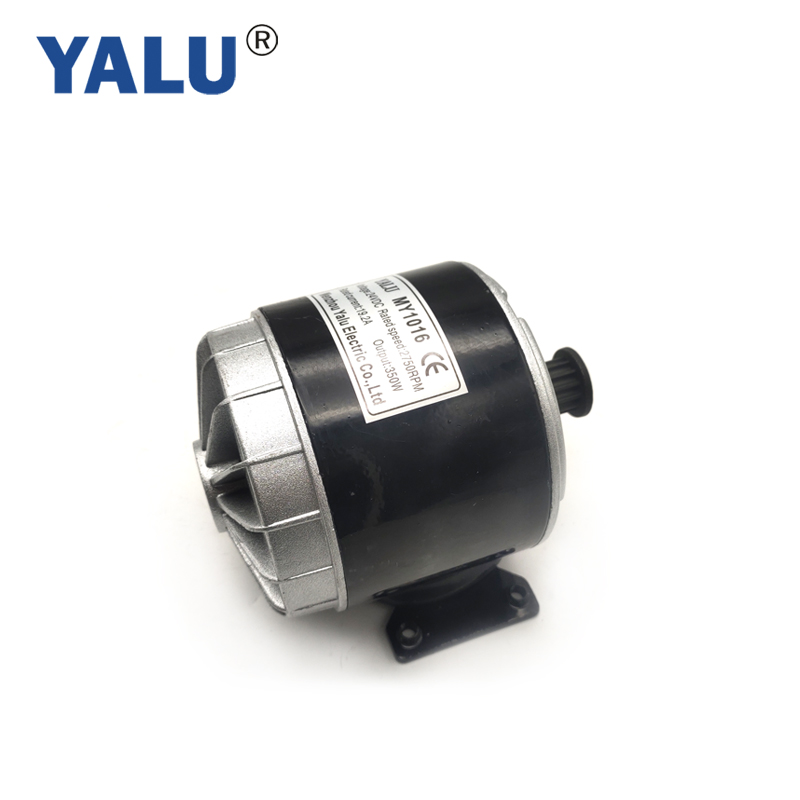

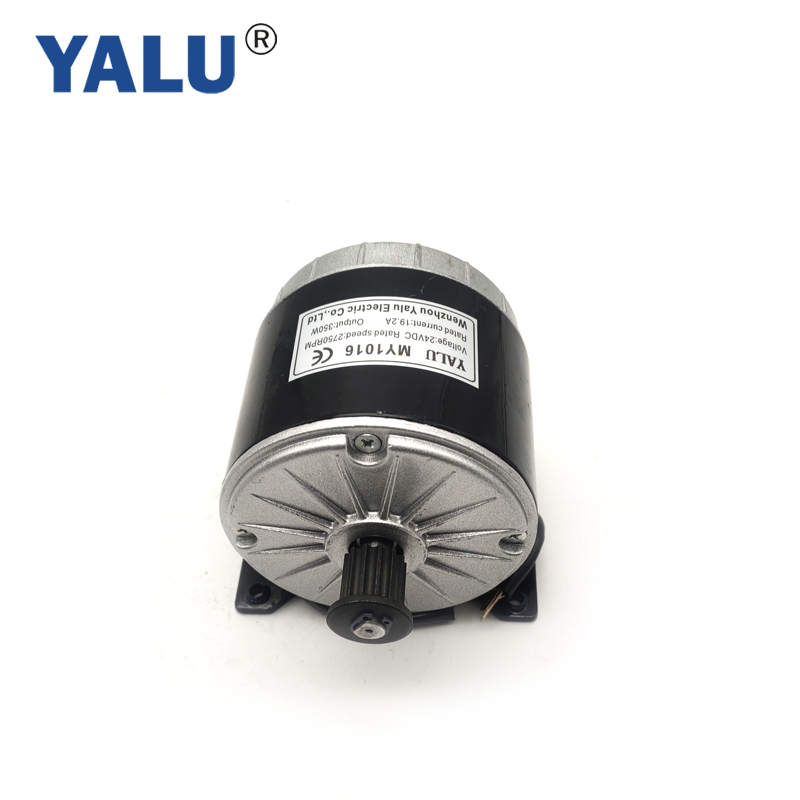

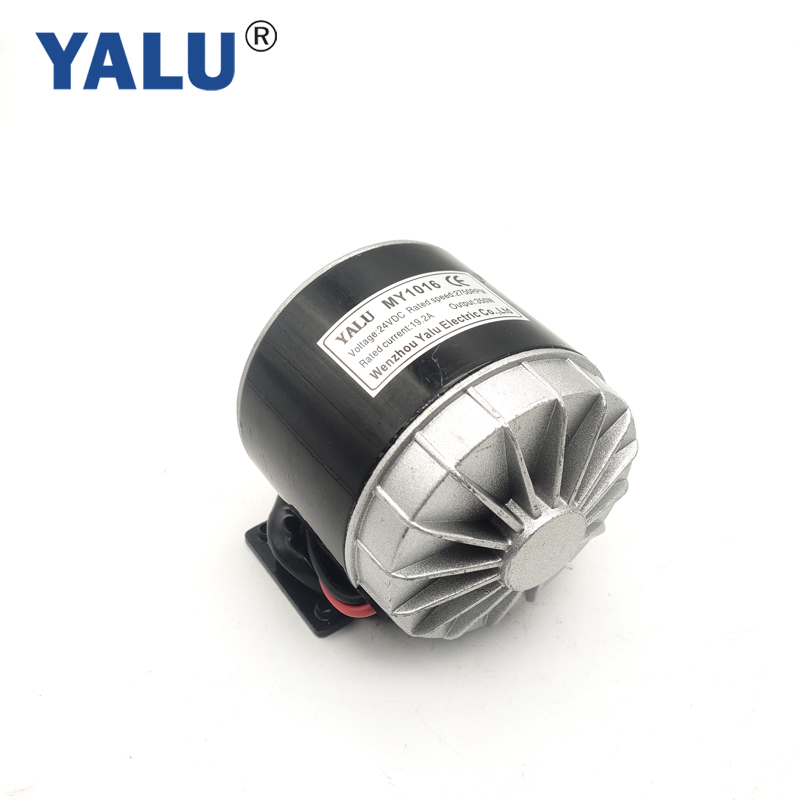

MY1016 250W 350W Electric KT EV Balance Electric Scooter High Speed Brush Electric Bike Motor with Belt Pulley

MY6812 High Speed Brush Motor with Pulley
Power option:200W,250W,300W,350W
Volt option:12V,24V
On sale: $99.00
Price: $100.00

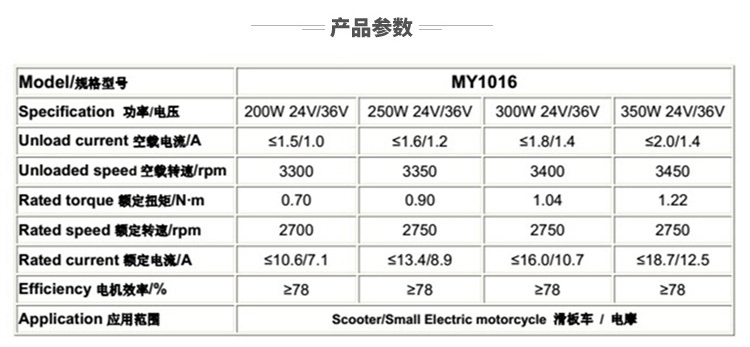

Specifications of Electric Bicycle Brush DC Motor

MY1016 24V 250W electric bicycle motor,E-bike motor,bicycle parts. 24 volt 250W output ,electric scooter and bike motor. Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket on the base. As this is DC motor it is capable of rotation in either the clockwise or counter clockwise direction by just reversing the battery polarity to the motor and can be speed controlled. If you want to speed control these, please take a look at our available speed controllers

1. Rated output Power 250W
2. Rated Voltage 24V DC
3. Rated speed 3000RPM
4. No load speed 3850RPM
5. Full load Current ≤13.4A
6. No load Current ≤2.2A
7. Rated Torque 0.80N.m
8. Efficiency ≥78%
9. Application Light E.V./ E-bike

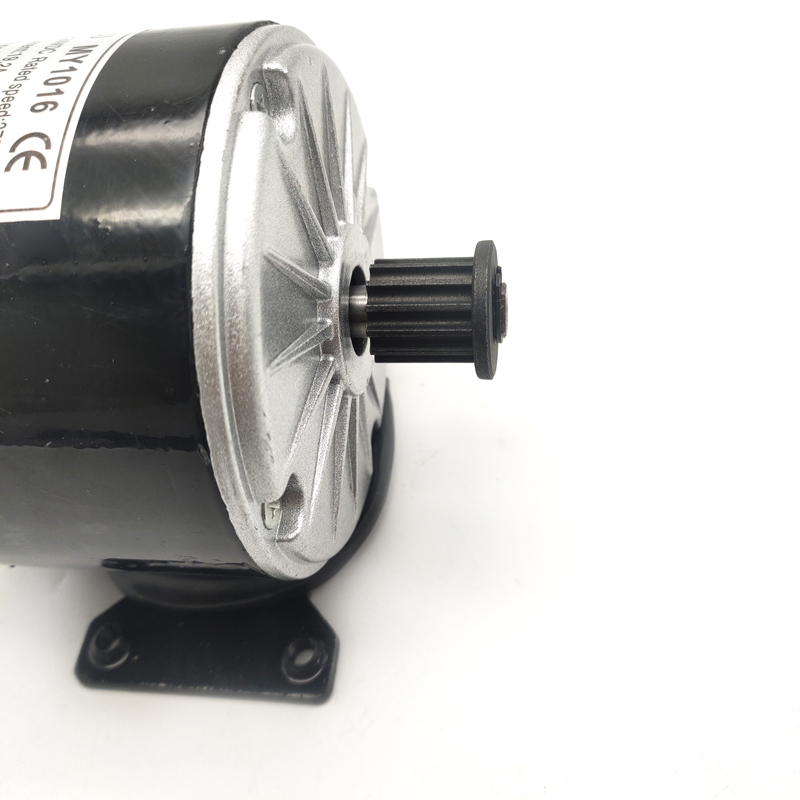

10.Transmission :chain sprocket (11 teeth, pitch 1/4"=6,35 mm), exchangeable, fixation nut shaft diameter :10 mm (milled groove one-sided 1,5 mm)

Load Weight:   80KG;

Install Distance of Holes: 42-95mm(total four holes);

Motor Gear: 11 gears;

Running Speed:  25-35 Kilometer/Hours;

Suitable Chain:  Small Chain

Suitable motorcycle type: Electric Scooter ;

Package:   12PCS/CTN

Original: Zhejiang of China;

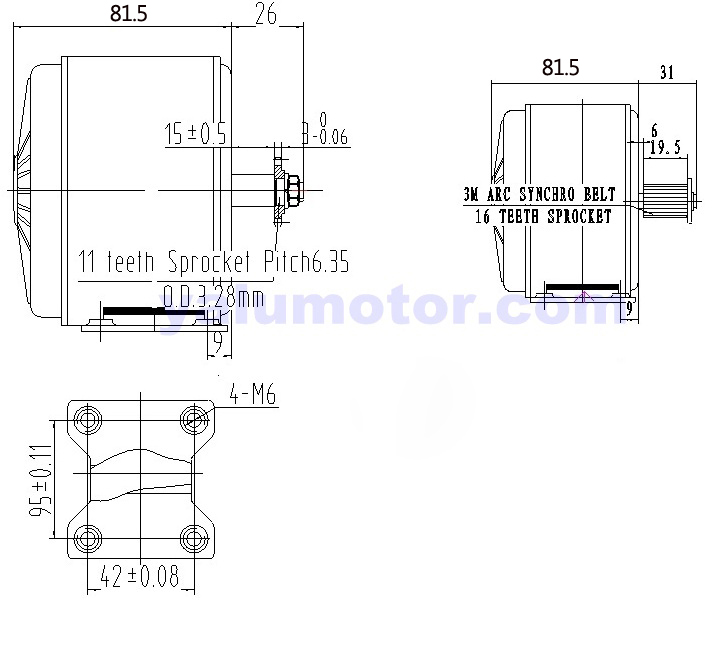

Overall Dimensions:

Motor Body Diameter:101mm;    Motor Body High: 81.50mm;

The Gear part High: 26.5mm;

So the Motor Total high is around 108mm.
